Subframe Drop Kit 2024+ Crosstrek
-
Anodized Red or Black Aluminum Spacers
-
Made to Re-Align the Rear Sub-Frame Geometry After Installing a Strut Spacer Lift Kit
-
Returns CV Axles to OEM positioning for Better Wear
-
Fixes Rear Camber and Toe Alignment Issues seen with Spacer Lift Kits
-
Helps Re-Center the Rear Tires in the Wheel Well
-
Includes Brake Line Extension Brackets
-
Includes Extended Exhaust Hangers
-
All Necessary Hardware Included
The Crawford Performance Subframe Drop Kit is inspired by the Subaru of America Crosstrek Desert Racer and made to re-align the rear sub-frame geometry after installing a strut spacer lift kit.
Our Subframe Drop Spacer Kit will allow for rear camber and toe correction, level out your CV angles, and also center the rear tire in the wheel well when lifting your car beyond 1.5 inches. The lifted look is maintained, and the vehicle stability will be dramatically improved.

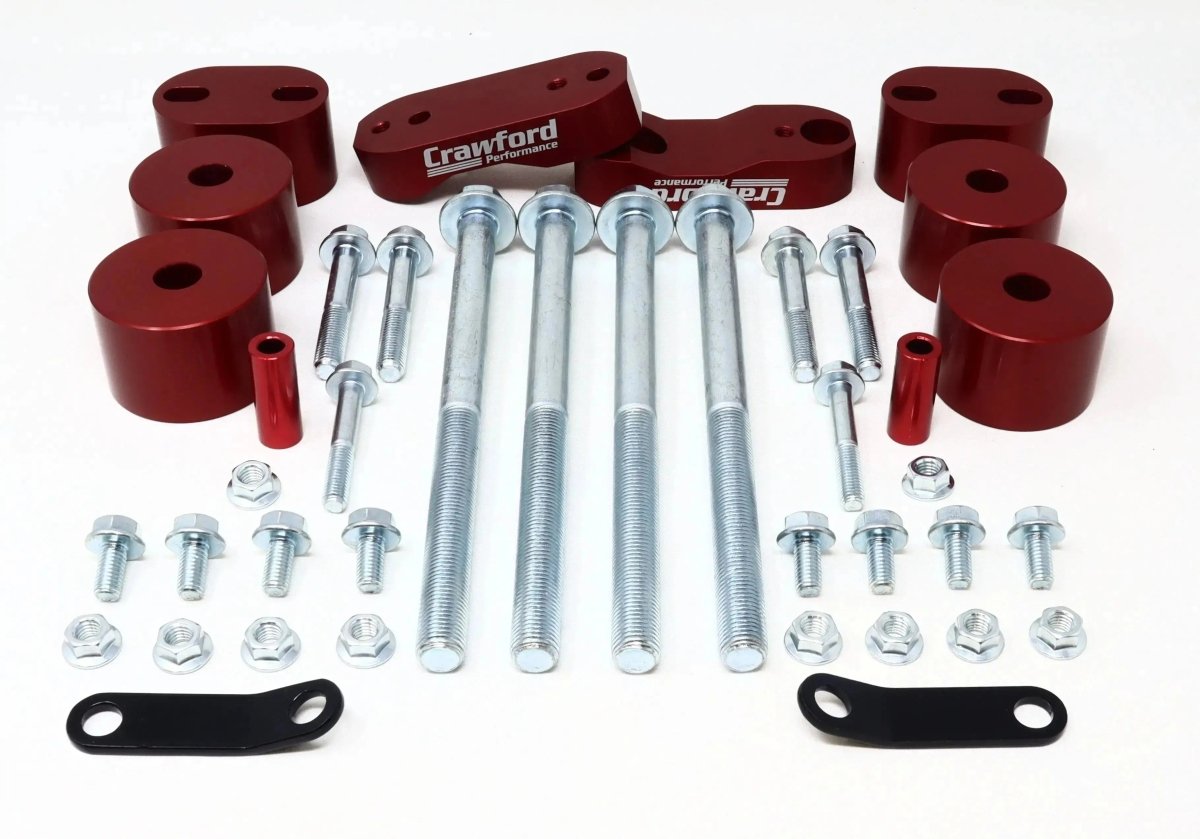

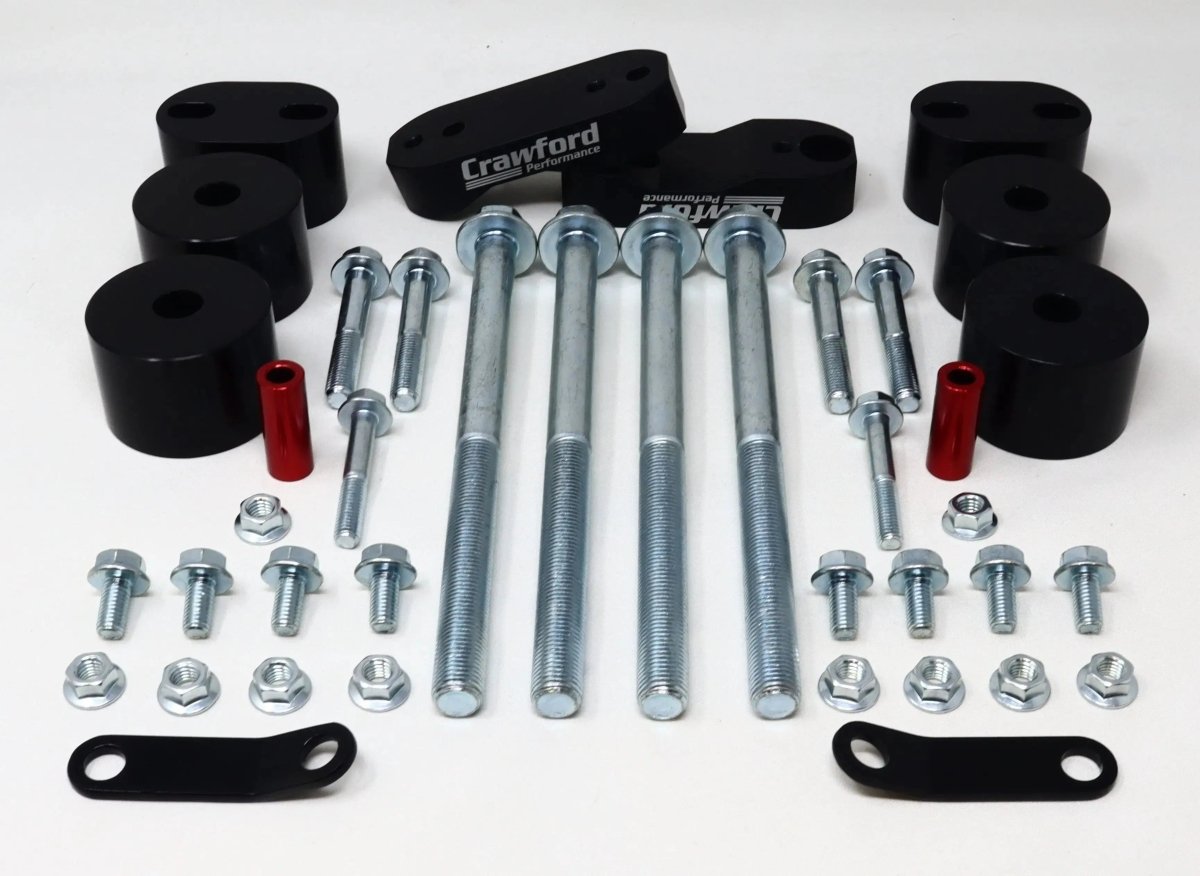

Included Lift Kit Components:

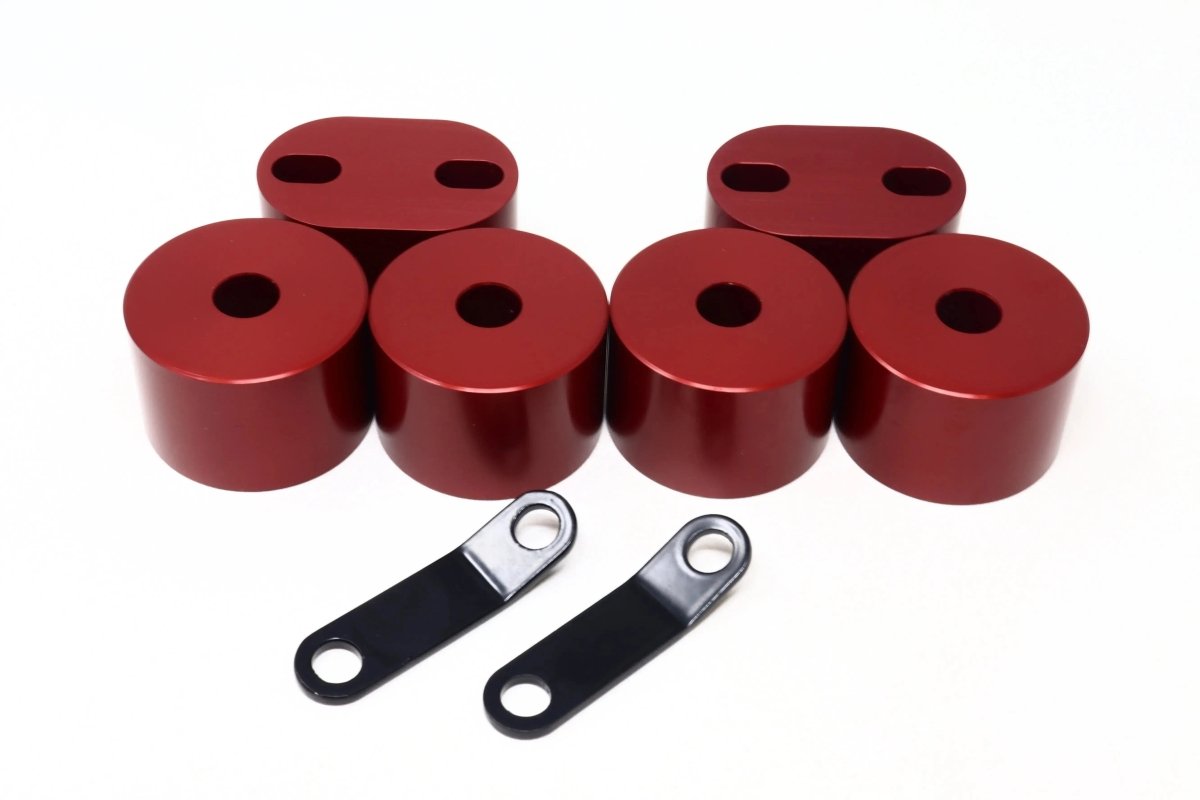

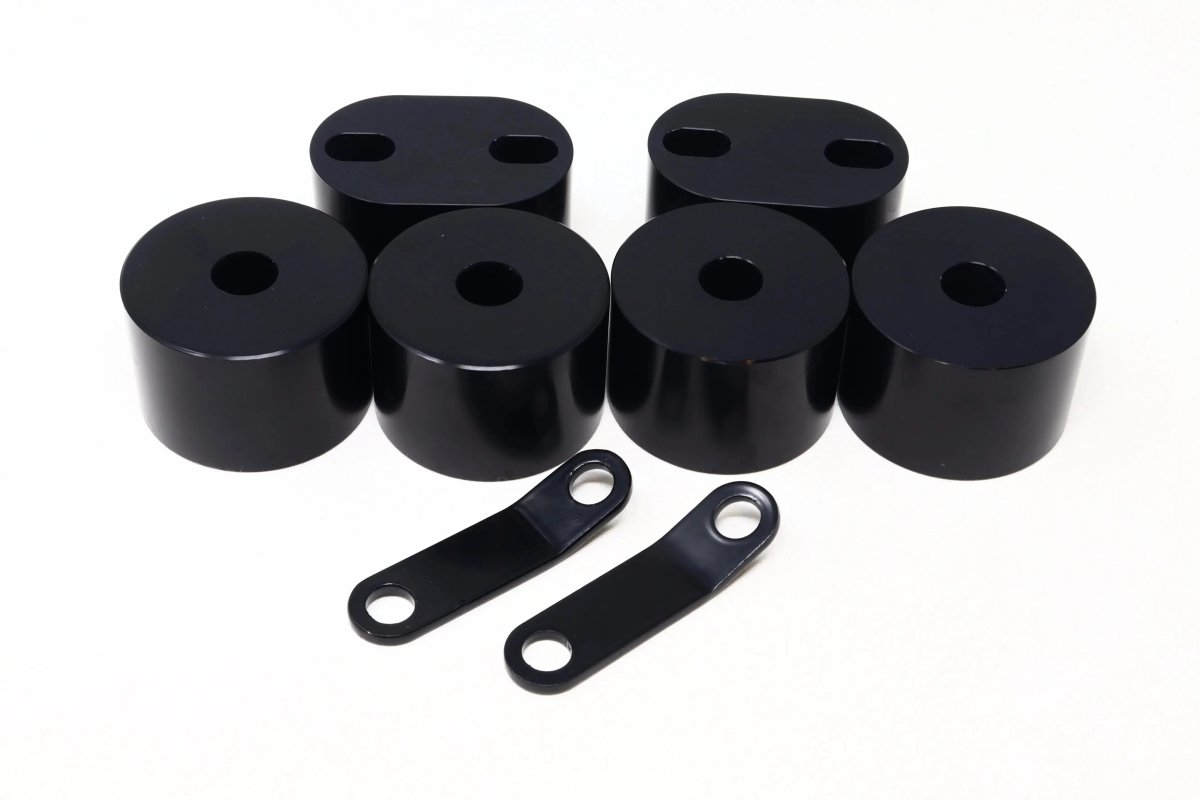

- Four Sub-Frame Drop Spacers
- Two Torsion Bar Spacers
- Two Sub-Frame Support Stand-Offs
- Two Rear Brake Line Extensions
- All necessary hardware
Note: Re-alignment will be required after installation
Install Instructions:
Check out our Full Crosstrek Build Here:
/pages/crawford-built-off-road-subaru-crosstrek

Shipping: Free shipping (continental US).
Fitment: Subaru Crosstrek 2024-2027.
