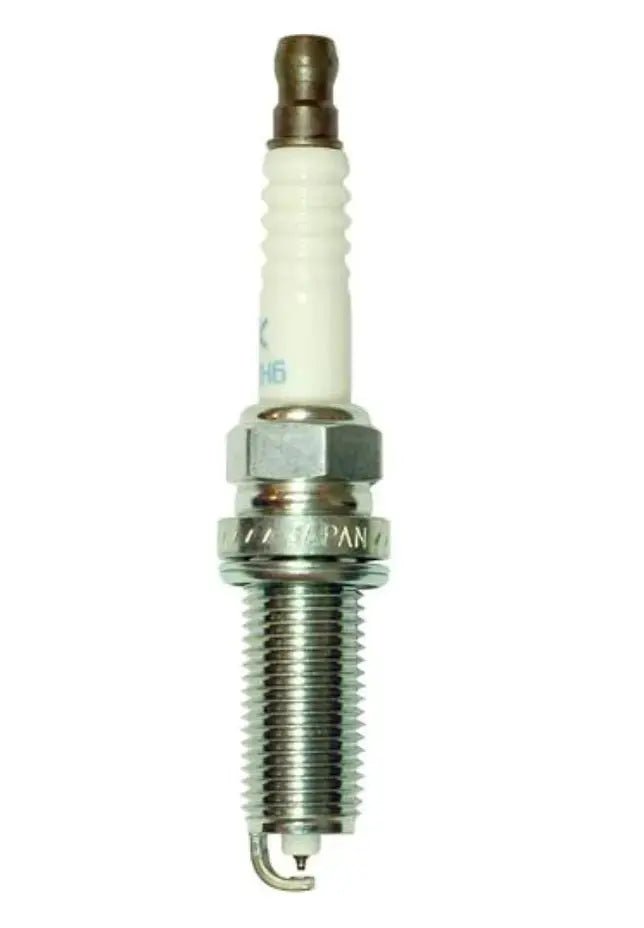

Discover the Benefits of NGK Spark Plug ILKAR8H6 96024
*Each plug sold separately.
2015+ WRX
NGK Laser Iridium spark plugs provide superior ignitability and long service life.

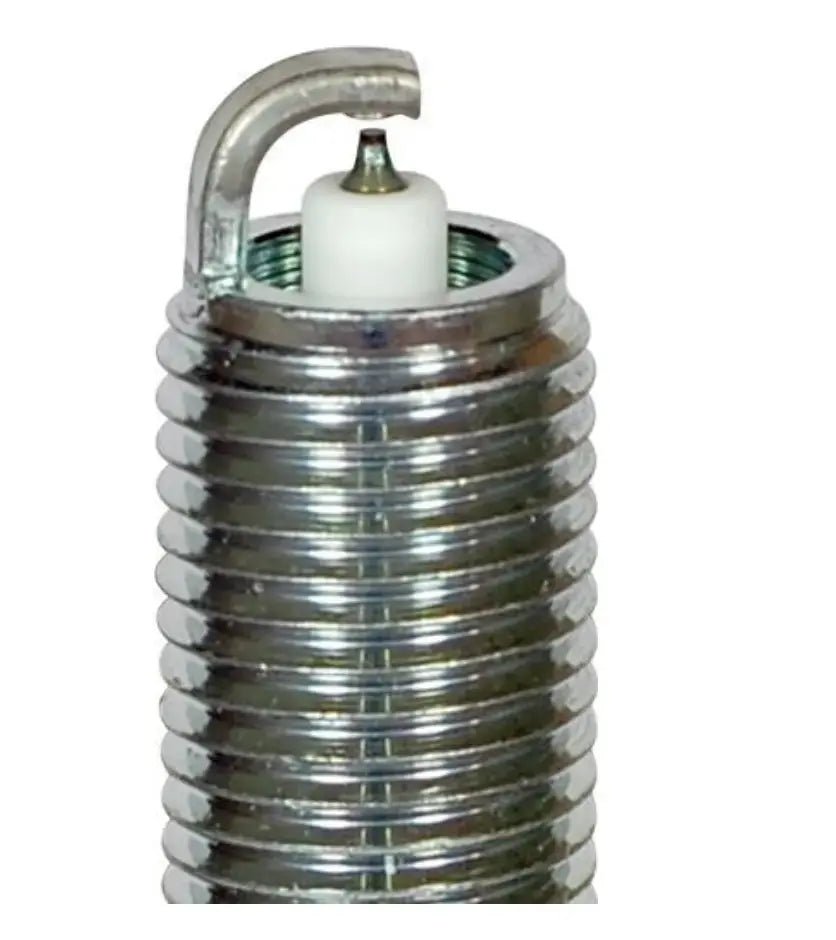

Fine wire iridium tipped center electrode and fine wire platinum tipped ground electrode ensures slow wear rate providing stable idle, superior anti fouling, improved fuel efficiency and lower emissions.
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Corrugated ribs prevent flashover
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Copper core aids in heat removal
- Triple seals prevent leakage
Shell
- Thread Size: 12mm
- Thread Pitch: 1.25mm
- Seat Type: Gasket
- Resistor Value: 5K Ohm
- Reach: 26.5mm (1.04")
- Hex Size: 9/16" (14mm)
- Terminal Type: Solid
- Overall Height: ISO
- Gap: .024" (0.6mm)
Center Electrode
- Material: Iridium
- Type: Fine Wire
- Size: 0.6mm
- Projection: Projected
Ground Electrode
- Material: Platinum
- Type: Standard
- Quantity: 1
Specifications
- Warranty: 1 Year
- Torque Specs: Cast Iron: 10.8-18 lb. ft. Aluminum: 10.8-14.5 lb. ft.
- Brand: NGK
- Heat Range: 8
- Longevity: 100k Miles
- Resistor: Yes
Shipping: Carrier rates apply.
NGK Spark Plug - ILKAR8H6 - 96024
Fitment is set by chassis and generation. Set your vehicle with the selector and the badge under the title confirms this part against your car. The full Crawford catalog for your generation:
| Generation | Years | Catalog |
|---|---|---|
| WRX (VB) | 2022–2027 | VB Mod Guide |
| WRX / STI (VA) | 2015–2021 | VA Mod Guide |
| WRX / STI (GR/GV) | 2008–2014 | GR/GV Mod Guide |
| WRX / STI (GD) | 2002–2007 | GD Mod Guide |
Not sure? Call (855) 677-8243 — a real Crawford tech will confirm fitment before you order.
