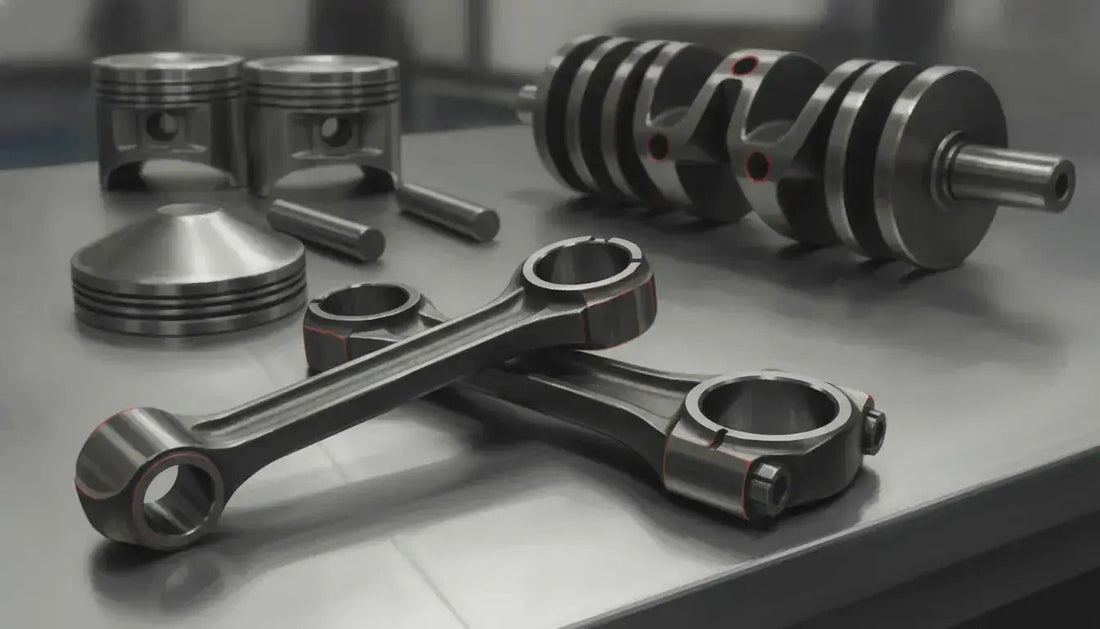

Subaru Connecting Rods: I-Beam vs H-Beam Explained

A connecting rod is not just a horsepower part. It transfers combustion force to the crankshaft, reverses direction thousands of times a minute, and helps decide whether an EJ or FA engine survives its intended use. The right choice depends on the complete combination — platform, power target, RPM range, boost strategy, and duty cycle — not on the beam shape alone.

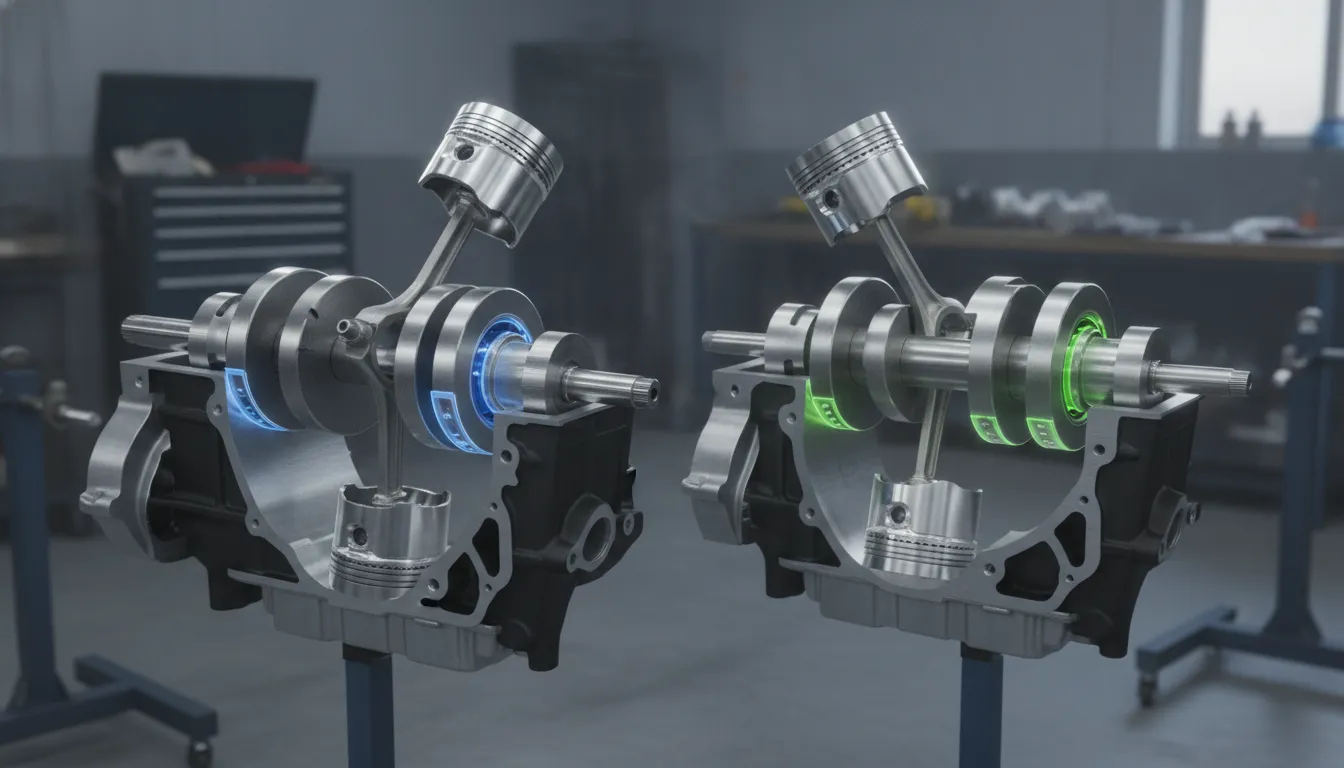

What a connecting rod does

The rod links the piston to the crankshaft. Combustion pressure pushes the piston down; the rod carries that force to the crank, which turns linear motion into rotation. The load never stays steady: cylinder pressure adds compressive load during combustion, and at higher RPM inertia takes over, pulling on the rod and its bolts at every stroke reversal.

Reciprocating mass is part of that load. Less unnecessary weight lowers inertia loads and supports a higher-RPM combination — but the lightest rod is not automatically the right rod. It also needs the section strength, stiffness, and fatigue resistance for the real load case. Rod choice is a system decision: changing one component can alter compression height, deck relationship, balance, and clearances, so measure final bearing clearances with the actual crank, rods, and bearings.

The failure order on a stock EJ257 shows why rods belong in this conversation. The stock engine is reliable to roughly 350 whp, and the cast pistons' ringlands fail first. Past roughly 400 whp, the stock connecting rods are the next failure point. In a Crawford built engine, CrawfordSPEC connecting rods — developed with Pauter Rods — work as one matched assembly with CrawfordSPEC forged pistons, made for Crawford by JE Pistons, the crankshaft, bearings, and fasteners. For more context, see Crawford's guide to built Subaru engines.

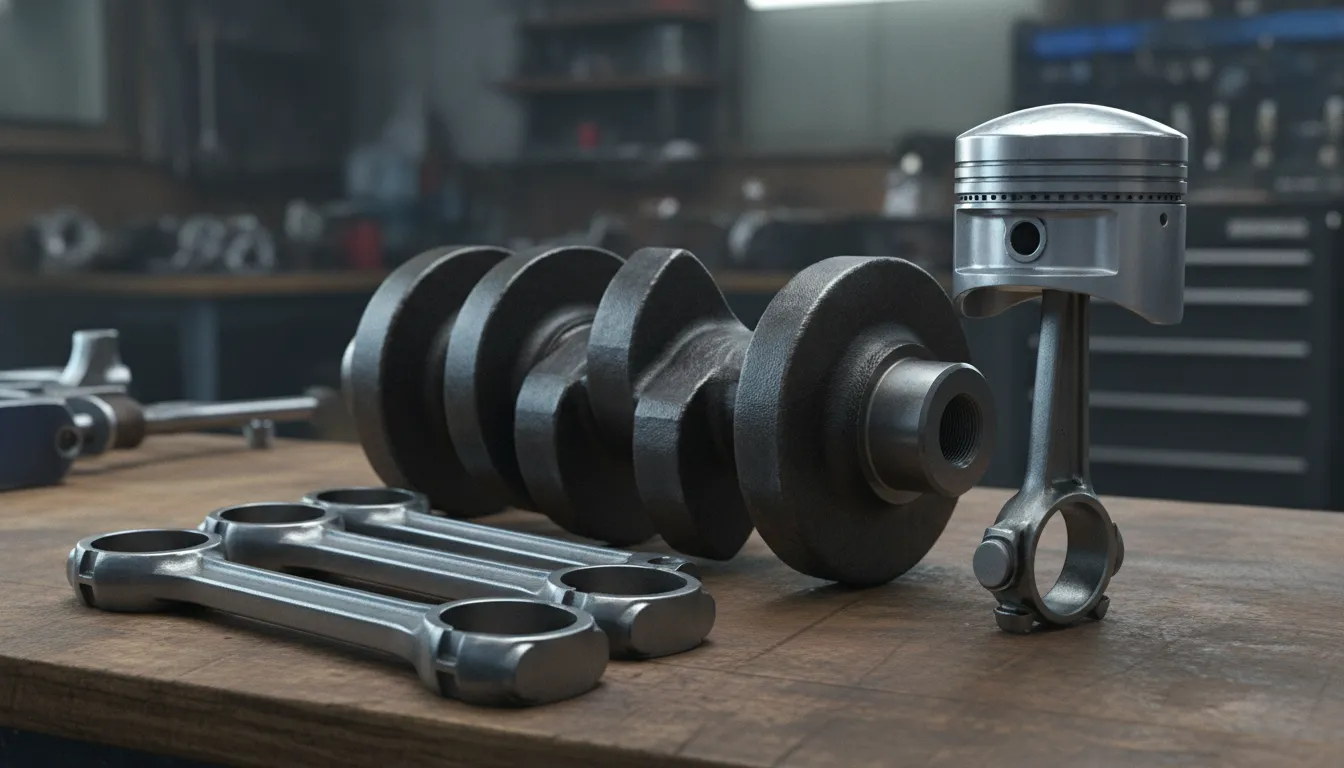

I-beam vs. H-beam

The beam profile is the shape of the rod's central section. It influences how material is distributed, how the rod resists bending and tensile loads, and how much mass the assembly carries. It is a meaningful design choice — not a complete strength rating by itself.

Factor I-Beam H-Beam
Design emphasis Efficient material distribution and lower mass Stiffness, with material concentrated around high-load sections
Common fit RPM-focused builds, when dimensions and strength meet the load High-torque or high-boost builds, when the complete design supports the application
Primary tradeoff Lower mass does not remove the need for stiffness and fatigue strength Additional material can increase reciprocating mass

Mass is not the same as strength. A lighter rod reduces the inertia load on the crankshaft, rod bolts, and small end as RPM rises, but removing mass without considering cross-section, material, and fatigue behavior is not engineering. These are tendencies, not rules: two rods can share a profile and differ in alloy, forging process, bolt package, small-end design, and quality control.

Materials and rod bolts

For performance Subaru engines, forged 4340 chrome-moly steel is a common choice for its strength and fatigue resistance. But "forged" is not a complete quality statement, and billet — machined from solid material, able to support precise shapes or custom dimensions — is not automatically stronger or weaker. Evaluate the documented component, not the label.

Rod bolts are part of the load path. They carry significant tensile load at every stroke reversal, and material, diameter, thread design, stretch behavior, lubricant, procedure, and reuse policy all affect the joint. A strong beam cannot compensate for a fastener installed outside its specification: use the manufacturer's procedure, and never substitute a different bolt assuming the original torque value still applies. Crawford's Subaru performance parts collection covers matched-build components.

Rod length and stroke

Rod length and crankshaft stroke together determine piston position, dwell behavior, deck relationship, and the parts required to reach the desired compression ratio. Piston compression height must match the distance from the wrist-pin centerline to the piston crown. Confirm the complete dimensional stack before ordering, and check every interference clearance with the actual parts. Never infer final clearance from a similar build. Measure bearing clearance the same way; the oil film it establishes affects oil pressure and durability. CrawfordSPEC engines use a longer-than-stock connecting rod, matched to the piston's compression height, inside an assembly designed around a stated power rating.

Choosing rods for RPM and power

Start with intended use, not an advertised peak number: platform, fuel, boost strategy, target power, RPM limit, duty cycle, and the crankshaft, pistons, bearings, fasteners, and oil-control plan. Choose a rod whose documented dimensions and load capability fit that list.

Street builds usually call for a matched rod that supports the planned power without unnecessary mass. Track builds add sustained heat and repeated high-load cycles, so RPM, shift strategy, oil control, bearing condition, tune stability, and inspection intervals get reviewed together. High-boost and drag builds emphasize cylinder pressure, torque, fastener capacity, tune stability, and the condition of the block and crank.

Crawford rates the finished assembly instead: CrawfordSPEC CSS 540 (450 whp, 540 bhp), Club Racer CCR 660 (550 whp, 660 bhp), and Racer Spec CRS 720+ (600+ whp, 720+ bhp); the legacy stage-named blocks carry their own — S2 (450 whp), S3L-X (550 whp), S3L-X FSR (600+ whp). In every case the rod is selected for the rating, not the other way around. For model-specific planning, see the WRX and STI range and confirm fitment before ordering.

What to check before ordering

  • Identify the exact platform. EJ or FA family, model year, block type, conversion details.
  • Confirm the crank stroke. Verify the actual crankshaft and stroke before ordering rods or pistons.
  • Match rod length and piston compression height. Center-to-center length, pin diameter and location, deck relationship.
  • Check big-end and small-end dimensions. Journal size, housing dimensions, side clearance, bushing fit, oiling provisions.
  • Specify bearings from measurements. Journal condition, bearing thickness, oil-hole orientation, target oil clearance.
  • Document the rod-bolt procedure. Correct lubricant; torque or stretch spec for the supplied fasteners.
  • Verify assembly clearances. Rod-to-block, piston-to-valve, piston-to-head, and interference points.

Installing a Crawford short block? The Crawford Short Block Installation Kit is the install kit for that job.

Frequently asked questions

What is the difference between H-beam and I-beam connecting rods? Different beam profiles for distributing material and managing stiffness, mass, and load. I-beam often suits RPM-focused combinations; H-beam, high-load forced-induction use. Neither label is a universal strength rating.

When should I upgrade Subaru connecting rods? When planned power, boost, RPM, or duty cycle exceeds the margin of the current components — matched to the rest of the combination, not a universal power threshold.

The bottom line

The right connecting rod is the one that fits the complete EJ or FA plan, confirmed before ordering — not an I-beam or H-beam chosen from a headline rating.

Crawford builds the whole assembly — built short blocks and long blocks on brand-new OEM blocks, no core required or needed, and Crawford-built long blocks ship free. Built engines carry a 1-year / 12,000-mile warranty, and break-in is mandatory: oil changes at 500 and 1,500 miles, engine speed kept between 2,000 and 4,500 RPM and varied, no sustained cruising or full-throttle pulls, no more than 80% of target boost until break-in is complete, and the first oil analysis is required.

Questions on a combination? Contact Crawford Performance or call (855) 677-8243.
