Subaru Compression Ratio Guide for Turbo Builds
Choosing the wrong piston dish for a built EJ257 can destroy an engine within seconds of hitting peak boost. Getting the Subaru compression ratio right is the only way to merge fast throttle response with safe, high-output power.
Ready to start your performance build? Explore Crawford Performance Built Subaru Short Blocks to find the perfect foundation for your Subaru.
The Subaru compression ratio for a turbo performance build should stay between 8.5:1 and 9.0:1 for most high-output street builds. This range offers the best balance between off-boost throttle response and the ability to run plenty of boost safely on premium pump gas. While stock EJ engines sit near 8:1 or 9:1, builders who go over a 9.5:1 ratio on pump fuel face a higher risk of knock. Modern direct-injection motors like the FA20DIT can handle 10.6:1, but older engines need a larger safety margin. According to Cobb Tuning, reducing the compression ratio is a standard way to lower the risk of knock in high-boost setups. Your choice depends on fuel, turbo size, and your goals for the build.
What is the Difference Between Static and Effective Subaru Compression Ratios?
What is compression ratio?
The compression ratio measures how much an engine squeezes air and fuel. It compares the space in the cylinder when the piston is at the bottom to the space when it hits the top. Most Subaru EJ20 engines use a ratio between 8.0:1 and 9.0:1 to handle boost.
A high ratio packs the mix tighter before it fires. This helps the engine get more work from every drop of fuel. Thermal fuel use improves with high compression, but it also makes the engine more prone to knock. This is why picking the right Subaru compression ratio considerations is a big step.
Static versus effective compression
Squeezing air and fuel creates both heat and pressure. When you compress a gas fast, its heat levels rise. If the ratio is too high, this heat can light the fuel before the spark plug fires.
This is called pre-ignition or knock, and it can break parts. Most turbo Subaru builds use a low ratio to leave room for the heat that comes from boost. This gives the tuner more space to work. It also helps the engine last longer under the stress of high power runs.
Static compression is a number based on the size of the engine parts. It comes from the math of the cylinder volume and the space in the head. No matter how fast you drive, this number stays the same.
Effective compression is the real pressure the engine feels as it runs. This is a key part of affecting Subaru compression ratio for turbo cars. When the turbo pushes air in, it raises the starting pressure before the piston moves. This means the real pressure in the cylinder is much higher than the static number suggests.
Factors that change your static ratio
Newer Subaru models like the WRX with the FA20DIT engine use a high 10.6:1 ratio. They handle this because direct injection cools the charge as fuel enters. Liquid fuel turns to gas and pulls heat out of the air.
This helps prevent knock even when the compression is high. In older EJ engines, the fuel enters the head before the cylinder. This means it does not cool the air as well. Most builds stay near a 8.5:1 ratio to keep things safe. Keeping peak cylinder pressure in check is the key to making big power without failing.
Many small changes can shift your base ratio. The most common way to change it is with the piston shape. A piston with a large dish will lower the ratio by adding space to the cylinder. You can also change the compression ratio and chamber volume by using other heads. When calculating your final static ratio, engine builders must account for several critical variables:
- Piston Dish Volume: Larger dishes increase clearance space and lower compression, while flat-top pistons raise it.
- Cylinder Head Chamber Volume: Different heads have unique combustion chamber shapes that alter total volume.
- Head Gasket Thickness: A thicker head gasket adds space between the block and head to decrease compression.
- Block Deck Height: The physical distance between the top of the piston and the block's deck surface.
Some heads have a small space for the valves, which raises the ratio. You must measure these spaces before you build the engine to know your numbers. Head gaskets and deck height also matter.
Deck height is the distance from the top of the piston to the top of the block. If the piston sits lower, the ratio drops. A thicker head gasket adds space between the head and the block, which also lowers the ratio.
Using a thick gasket is an easy way to drop compression without new pistons. You must also think about how intercooler cooling is vital for your setup. Keeping the air cool helps you run a higher ratio with less risk of damage.

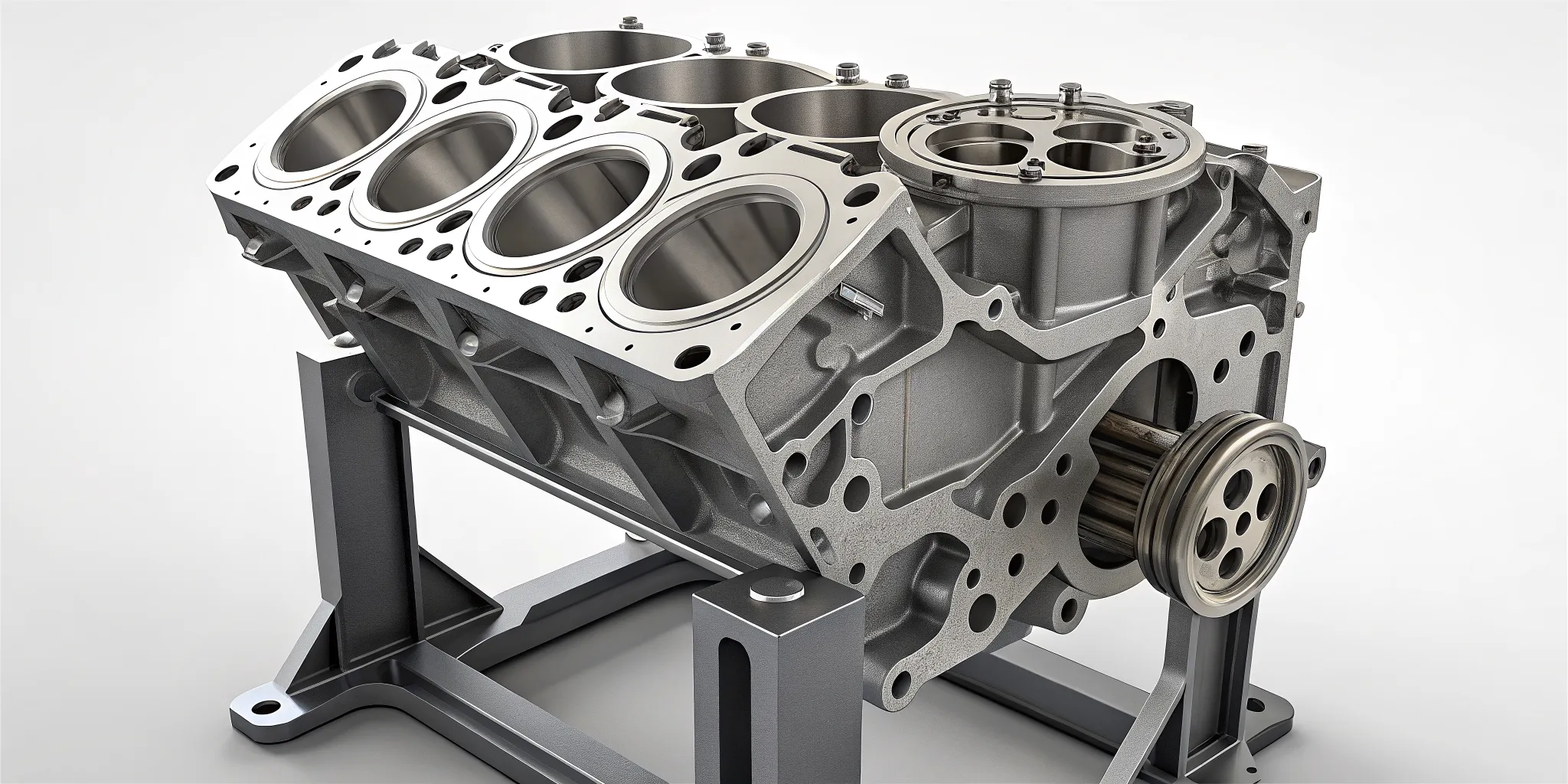

How Does Subaru Engine Architecture Control Your Compression Ratio Options?
Subaru engines have changed a lot over the years. The way these engines handle fuel and air sets the limit for the Subaru compression ratio. Older EJ-series engines use port fuel injection. This design sprays fuel into the intake air before it enters the cylinder. Newer FA-series engines use direct injection. This choice in how fuel moves into the engine changes how much pressure the pistons can handle safely.
Port injection and the EJ series limit
The EJ-series engine has been a favorite for car fans for a long time. These engines use port injection to mix fuel and air. This setup limits how high the pressure can go. If the pressure is too high, the fuel might catch fire on its own. This is called engine knock, which can cause real damage to the block. To stay safe, the EJ20 usually has a ratio between 8.0:1 and 9.0:1. The larger EJ257 usually stays within 8.2:1 to 8.5:1 to allow for boost. These standard vs performance compression ratios help the engine last longer under stress.
Engine builders often stick to these lower numbers for a reason. A lower ratio gives a wider window for the tune. This makes the car safer to drive on normal pump gas. While a low ratio might feel less snappy off boost, it allows for more peak power once the turbo kicks in. Most street cars find a good balance here. Keeping the ratio low helps prevent heat from building up too fast. This protection is key for port-injected engines that lack modern cooling tools.
Direct injection and the FA series shift
The FA20DIT engine changed the game for Subaru. It uses direct injection to spray fuel right into the combustion chamber. This method gives evaporative cooling inside the cylinder. As the liquid fuel turns to gas, it pulls heat away from the air. This cooler charge is much less likely to ignite too soon. Because of this cooling, the FA20DIT can run a high ratio of 10.6:1. This is a big jump from the older EJ designs.
Modern tools like advanced engine controls and variable valve timing also help. These systems let the engine handle more pressure without the risk of knock. A higher ratio makes the engine more efficient when you are not using boost. This means better gas mileage and more torque at low speeds. Direct injection makes it possible to have both power and safety at the same time. It is one of the biggest steps forward in Subaru engine design.
Finding the best ratio for your build
Choosing the right ratio depends on your goals and your fuel. If you are building an EJ engine for the street, a ratio near 9.0:1 is often best. This gives a good mix of response and safety. If you want to use E85 fuel, you can go even higher. E85 resists knock very well, so a 10.0:1 ratio might work for you. Always talk to a pro before you pick your pistons. They can help with tuning for ideal compression ratios based on your local fuel quality.
Your choice will change how the car feels to drive. High compression ratios make the car feel fast even before the turbo builds pressure. Low compression ratios are safer for very high boost levels. You must balance these factors to get the best result. The head design and chamber volume also play a part in this math. Make sure every part of your build works together to reach your power goals safely.
What is the Best Subaru Compression Ratio for Turbo Builds?
Choosing the best Subaru compression ratio is a key step in any engine build. This choice sets the base for how much power your car can make safely. At Crawford Performance, we offer many options for Crawford Performance Built Subaru Short Blocks to match your goals. You must pick a ratio that works well with your fuel type and boost plans.

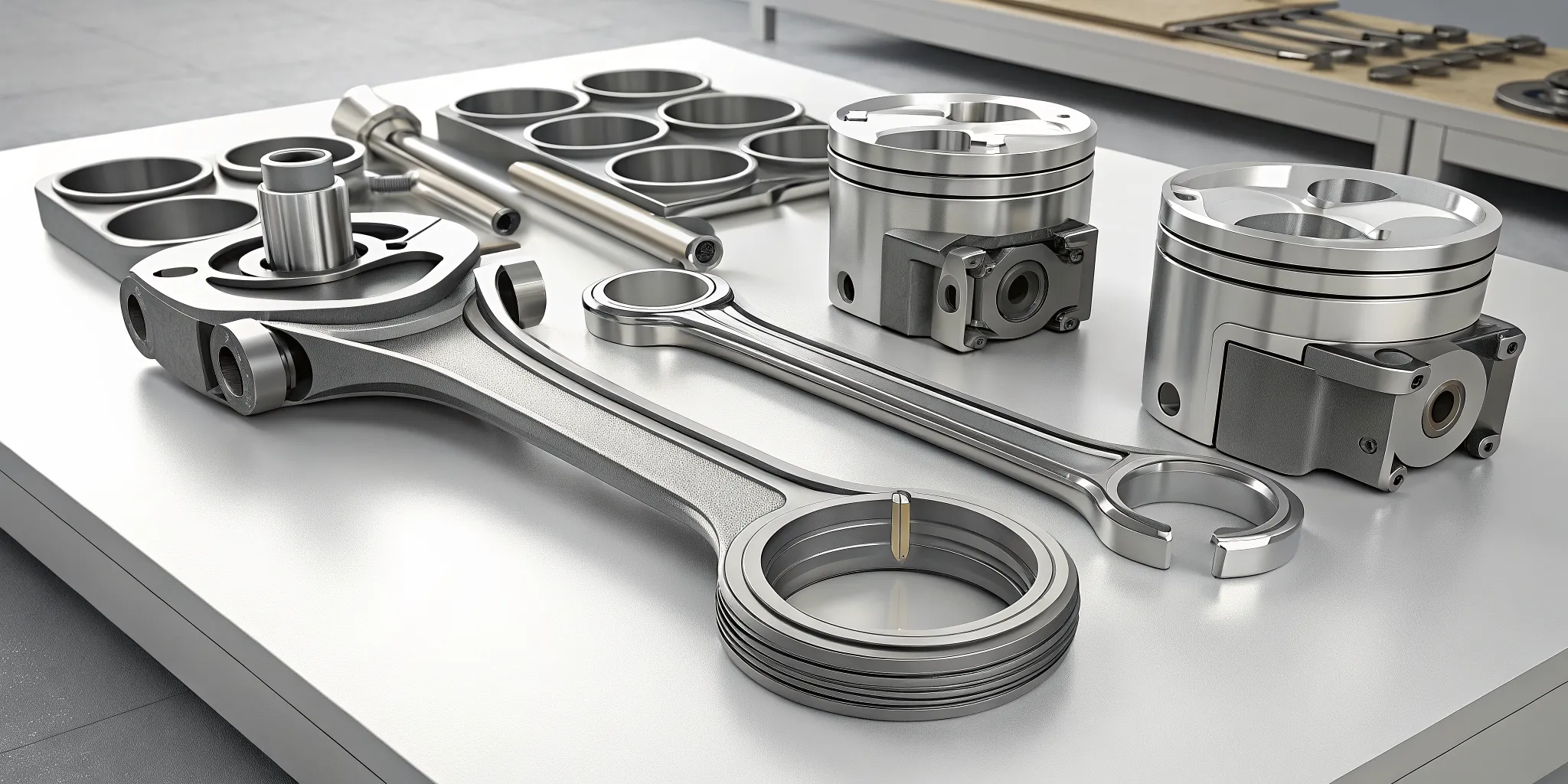

Upgrading your pistons or rotating assembly to handle higher cylinder pressure? Shop Crawford Performance Forged Subaru Engine Internals for race-proven durability.
Matching Your Ratio to Fuel Choice
Fuel is the biggest limit on your compression ratio. If you use pump gas, a lower ratio like 8.2:1 or 8.5:1 is often best. This helps prevent knock, which is when fuel burns at the wrong time due to high heat. Knock can cause big engine damage very fast. Lowering the ratio gives your tuner more room to work with timing and boost.
For cars that run only on E85, you can go much higher. E85 cools the engine better and resists knock much more than pump gas. We often suggest a ratio up to 10.0:1 for race builds using this fuel. This setup makes great power even when you are not in boost. It also makes the turbo spool up faster, which feels great on the track or street.
Balancing Boost and Throttle Response
Most street drivers want a balance of power and feel. A 9.0:1 ratio is a popular sweet spot for daily drivers. It gives you good throttle response around town but still lets you run plenty of boost safely on high grade pump gas. You should look at Subaru compression ratio rules when picking your parts. The right piston shape will set your final ratio.
High boost builds for the drag strip often use a lower ratio. This lets you cram more air and fuel into the engine without hitting the knock limit. But if the ratio is too low, the car may feel slow or "lazy" before the turbo kicks in. The table below shows how different ratios fit common build goals and fuel types.
| Compression Ratio. | Recommended Fuel Type. | Target Boost Range. | Primary Build Application. |
|---|---|---|---|
| 8.2:1 to 8.5:1. | 91/93 Pump Gas. | 25-35 PSI. | High-Boost Drag Racing & Extreme Street. |
| 9.0:1. | High-Grade Pump / Flex Fuel. | 18-24 PSI. | High-Response Daily Driver & Street Performance. |
| 10.0:1. | E85 Only. | 25+ PSI. | Dedicated Track, Time Attack, & Dedicated Race Builds. |
| 10.6:1. | Direct-Injection Pump / Flex Fuel. | 12-22 PSI. | Modern FA-Series / FA24 Street Performance. |
The Role of Engine Tuning
Higher ratios make the engine work better. This means you can make the same power with less boost. But a higher ratio also makes the tuning window smaller. This means there is less room for error. Any change to your ratio needs a new ECU map to keep the engine safe. A pro tuner will adjust timing to match the new cylinder pressures.
Keep in mind that modern engines like the FA20 use different tech. These use direct injection to run high ratios safely from the factory. For older EJ engines, sticking to the known ratios is the best path to a long life. Always talk to your builder before you buy pistons for your new short block.
How Fuel Types and Boost Pressure Impact Compression Choice
Choosing the right compression ratio for your engine depends on the fuel you plan to use. Fuel octane ratings tell you how well a liquid resists knock. In a turbo engine, knock happens when the fuel ignites too early. High heat and pressure cause this, which can break the engine. Your fuel choice sets a hard limit on how much pressure your cylinders can take safely.
Pump gas limits for the EJ engine
Most street cars run on standard pump gas from a local station. For a Subaru EJ engine, you must be careful when affecting Subaru compression ratio stats. Most experts agree that you should not exceed a 9.5:1 ratio when using pump gas. Going above this mark creates a high risk of knock because pump gas cannot handle the heat and pressure of a turbo build. Engine knock is a complex event where fuel ignites on its own before the spark plug fires.
For a street car, a 9.0:1 ratio is often the best choice. This choice gives a good mix of speed and safety. You can run fair boost without race fuel. If you go too low, the car feels slow before the turbo kicks in. Staying at 9.0:1 keeps the car fun and saves engine parts.
The E85 advantage for higher compression
E85 fuel changes the game for many Subaru owners. This fuel is mostly ethanol, which has a much higher octane rating than pump gas. It also cools the intake charge as it enters the engine. These traits make the fuel hard to light by chance. Because of this, you can safely run a higher Subaru compression ratio of up to 10.0:1 on turbo builds. High ratios help the engine make more power even before the turbo reaches full boost.
Direct injection also helps manage heat in modern engines like the FA20. But most EJ builds still use port injection. In these cases, the cooling effect of E85 is vital. Peak cylinder pressure is set by when knock starts. By using a fuel that resists knock, you can squeeze more power out of every stroke. This is why E85 is the top choice for many high-output builds that want to keep a high compression ratio.
Balancing boost and static compression
There is a direct link between static compression and the amount of boost you can run. Static compression is the true ratio of the cylinder volume. Boost adds more air and fuel, which raises the total pressure. If you have a high static ratio, you may have to run lower boost to avoid knock. On the other hand, a low ratio lets you use much more boost. Many builders choose a lower ratio to leave room for more turbo pressure later.
Lower ratios usually need more boost to reach the same power as a high compression build. This tradeoff is part of the Subaru compression ratio considerations you must weigh before starting a build. Using an intercooler is also a key part of this balance. It keeps the intake air cool, which helps prevent knock even when boost levels are high. Finding the right mix of these factors ensures your engine makes great power and lasts a long time.
Choosing the Ideal Compression Ratio for Your Performance Build
Picking the right Subaru compression ratio is a hard act to get right. It is a mix of power, safety, and how the car feels to drive. For most street-driven cars on premium pump gas, a ratio of 9.0:1 is the sweet spot. This setup gives you great off-boost throttle response while keeping enough room to run safe boost levels. If you go too low, the car can feel slow when you are not in boost. But if you go too high, you run a big risk of engine knock on standard fuel.
Safety at High Horsepower
When you aim for very high horsepower, the room for error gets much smaller. For these builds, we suggest a ratio between 8.5:1 and 9.0:1 to make sure the engine stays safe under heavy load. Pushing past 9.5:1 on an EJ series engine with pump gas is risky. It often leads to detonation. This occurs when the air and fuel mix ignites on its own due to high heat and pressure. You can find more about how these forces work in research on engine combustion and knock. To maintain safety at extreme power levels, ensure you implement these key engine-building safeguards:
- Run Forged Internals: Forged parts withstand extreme cylinder pressures from boost.
- Optimize the Intercooler: Intercoolers keep charge temperatures low to reduce knock risk.
- Use High-Octane or Flex Fuel: Ethanol raises octane to allow higher effective compression.
- Ensure Precise ECU Tuning: ECU tuning must match your exact engine build.
Lower ratios allow you to run more boost, but they also change how the engine works. A lower ratio engine usually needs more boost to reach the same power as one with a higher ratio. This is a common trade-off in turbocharged engine design. Builders must choose between peak cylinder pressure and overall safety. For those who want a proven base, starting with Crawford Performance Long Blocks makes sure your ratio is set right for your goals.
How Fuel Choice Changes the Math
The fuel you plan to use is a major factor in your choice. If you build your engine for E85 fuel only, you can safely run a higher ratio up to 10.0:1. E85 resists knock much better than pump gas. This lets you gain more from higher compression to get better power. But if you will mostly use pump gas, staying near 9.0:1 is best for long-term health. Using the right parts helps you hit these targets with gear built to take the heat.
Matching Your Pistons and Heads
To get your goal ratio, you must look at your pistons and cylinder heads together. The dish volume of the piston is the main way to set the static ratio. You also need to think about Subaru compression ratio considerations when picking forged parts for your block. Different piston shapes will change the volume in the chamber. The shape of the head also matters. The volume of the chamber works with the piston to set the final number.
Once the engine is built, expert ECU tuning is the final step. Any change to the compression ratio shifts the knock limit of the engine. A tuner must update the spark timing and fuel maps to match the new build. This keeps the engine safe under all types of driving. Without a proper tune, even a perfectly built engine can fail quickly. Proper planning from the start will give you an engine that is both fast and solid for years to come.
Need expert guidance on selecting the right setup or ready to upgrade to a complete engine? Browse our Crawford Performance Subaru Long Blocks or contact our team of professional builders today.
Frequently Asked Questions
What is the stock compression ratio for a Subaru engine?
Stock Subaru ratios change based on the specific engine and model year. Older EJ series engines often fall between 8.0:1 and 9.0:1 to handle boost pressure safely. Newer engines like the FA20DIT use direct injection to reach a higher ratio of 10.6:1. These higher numbers help with fuel use and power but change how you tune for more boost.
Why do Subaru STI engines use lower compression ratios?
Performance engines like the Subaru STI often use lower static ratios to stay safe under heavy boost. A lower ratio creates a larger safety net against engine knock or detonation. COBB Tuning says that lowering this ratio is a standard way to cut the risk of damage. This is key when you want to run high boost levels for more peak power without any parts breaking.
Does a higher compression ratio require higher octane fuel?
Yes, higher ratios usually need higher octane fuel to prevent engine knock. High pressure and heat in the cylinder can cause fuel to explode too early. Using high-grade pump gas or E85 helps the engine run smoothly. For example, Crawford Performance notes that E85 allows for ratios up to 10.0:1. This works because it resists knock better than regular pump fuel found at most gas stations.
What compression ratio is best for high-horsepower Subaru builds?
For most high-horsepower turbo builds, staying between 8.5:1 and 9.0:1 is best. This range offers a good mix of fast throttle response and safety. Experts at Crawford Performance suggest that going above 9.5:1 on an EJ series engine with pump gas is risky. It is key to match your ratio to your fuel type and your exact power goals to make sure the engine lasts.
