Subaru WRX Intercooler Upgrade: TMIC vs FMIC Compared

Stock Subaru WRX intercoolers suffer from severe heat soak after only a few hard acceleration runs. Upgrading this system is the only way to maintain consistent boost pressure and protect your engine from dangerous detonation.

Before you buy new Subaru WRX performance parts, you need to understand how heat affects your Boxer engine. We will compare top-mount and front-mount options to help you choose the best setup for your goals. The decision begins with Why Upgrade Your WRX or STI Intercooler?

Subaru Wrx Intercooler Upgrade: Why Upgrade Your WRX or STI Intercooler?

The limits of stock Subaru intercoolers

Subaru sports cars are famous for their turbocharged engines, but the stock parts leave a lot of power on the table. The factory top-mount unit on the STI is better than the WRX unit. Still, both parts have plenty of room for improvement. If you want to push more boost, the factory system will soon become a bottleneck.

When you tune your car, you need to guide cold air into the engine. Hot air is thin and holds less oxygen, but cold air is dense and lets the engine burn more fuel. A stock intercooler cannot keep up when you add aftermarket Subaru WRX performance parts. To get the most from your build, a stronger cooling core is a must.

The challenge of heat soak

The main enemy of a top-mount setup is heat soak. In a stock Subaru, the intercooler sits right on top of the hot engine. When you sit in traffic or idle at a stoplight, the metal core absorbs engine heat. Once the core gets hot, it can no longer cool the incoming air.

Stock cores are quick to heat soak. They struggle to maintain high performance, even at stock boost levels. Since an intercooler works on simple thermodynamics, its efficiency depends on the temperature difference between the air and the core. This is studied in cooling science papers.

Benefits of upgraded cooling

A Subaru WRX intercooler upgrade solves these issues. Larger aftermarket units use thicker cores and better designs to handle more heat.

Upgraded intercoolers offer several key design benefits:

• Thicker bar-and-plate cores that shed heat much faster
• Larger surface areas to cool incoming charge air
• Cast aluminum end tanks that boost airflow

Running cooler keeps your engine safe from harmful knock while letting you run more boost and timing. This means you get steady horsepower that does not fade on hot days or during track sessions. A quality Subaru performance parts setup keeps your car running strong. It ensures your car has plenty of power when you step on the gas.

TMIC vs FMIC: What's Best for Your Subaru WRX?

The top-mount intercooler option

When planning a Subaru WRX intercooler upgrade, you must choose between a top-mount and a front-mount setup. Each design has distinct trade-offs in terms of install work, cost, and cooling limits. Your choice depends on your budget and your horsepower goals. Both systems work to cool the compressed air from your turbo, but they go about it in very different ways.

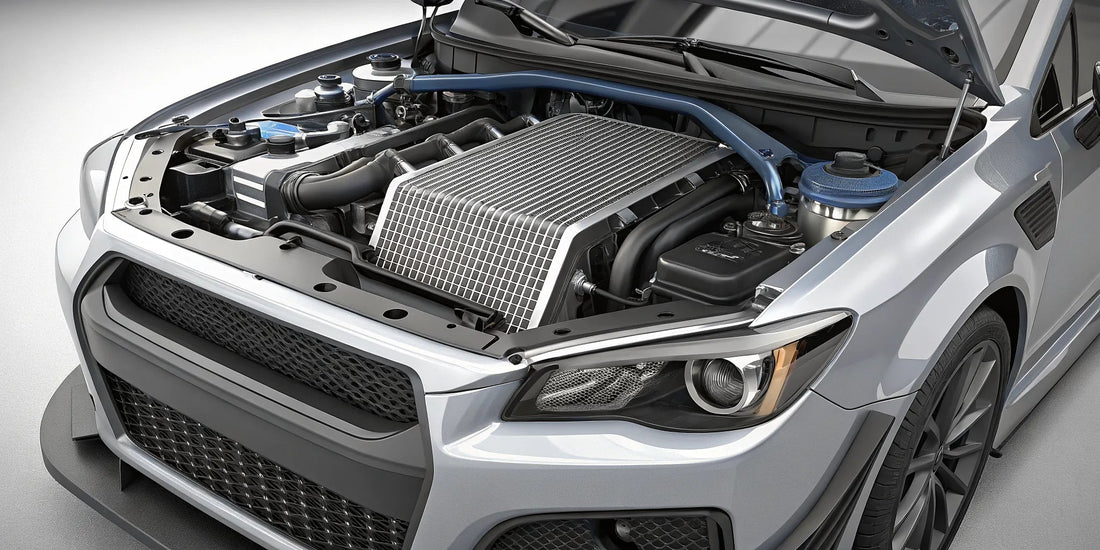

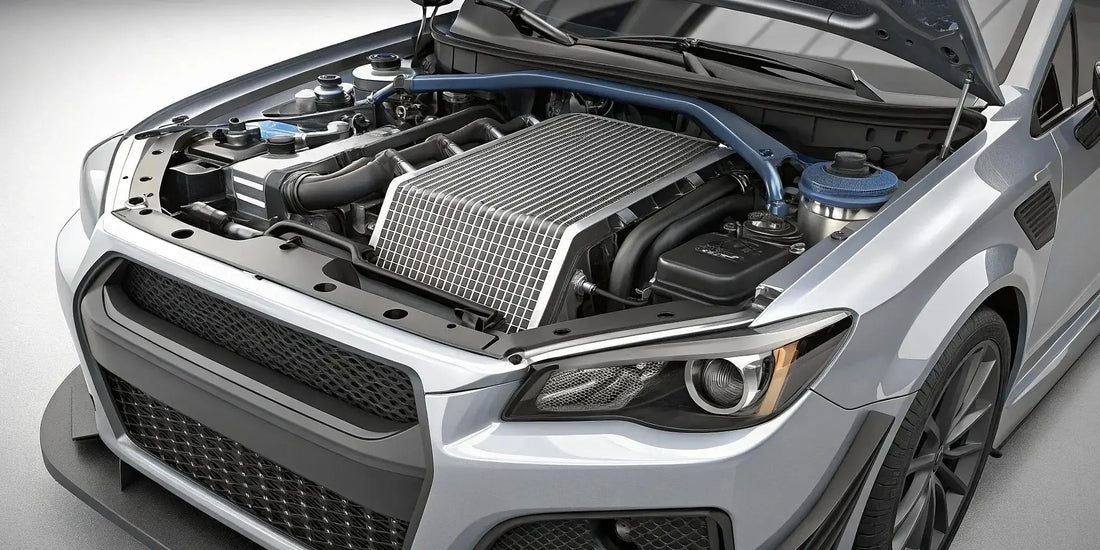

A top-mount intercooler (TMIC) sits right on top of the engine. This spot allows for very short piping from the turbo to the throttle body. Short piping means there is less air volume to fill, which results in faster throttle response and less turbo lag. Because of this, a TMIC is highly suited for daily driving or tight autocross courses where quick throttle response is key.

But the top-mount layout has a major drawback: heat soak. Since the unit sits directly above a hot engine bay, it absorbs heat when the car is idling. Once heat soaked, the air entering your engine becomes hotter, reducing performance. Upgraded TMIC units from brands like Cobb and Grimmspeed solve this by using larger cores. For example, a Cobb TMIC provides a 30% airflow increase over the stock unit while keeping a simple bolt-on install. This design is a direct fit and does not require you to trim your factory bumper.

The front-mount intercooler option

If you want to make high horsepower, a front-mount intercooler (FMIC) is needed. A front-mount intercooler moves the cooling core to the front of the car, right behind the bumper. This setup puts the core in cold, outside air rather than hot engine bay heat. For massive power, an AMS front-mount kit offers a 325% larger core area than the stock top mount. These large FMIC cores, such as those from AMS and ETS, fill the entire front bumper opening for maximum airflow.

But this better cooling comes with a cost. The longer piping required to route air to the front bumper can cause a slight delay in throttle response. The science of heat transfer governs intercooler efficiency, as shown in research on NCBI PubChem. While an FMIC keeps intake air cold during long track sessions, installing one requires custom piping, bumper trimming, and moving support bars. This makes the install process much more complex than a simple top-mount swap. You will need some patience and basic shop tools to complete this job at home.

Comparing top-mount and front-mount specifications

To help you choose, we compare the two layouts across key metrics. This breakdown covers piping length, heat soak resistance, power limits, average price, and install work. Review the comparison table below to find the best fit for your build. We compare the stock setup with upgraded options to give you a clear path forward.

Does Engine Platform Matter for Intercoolers?

The engine under your hood dictates how you manage heat. When planning a Subaru WRX intercooler upgrade, the engine platform is the main factor. EJ and FA platforms use different layouts that control how charge air flows. You must know these differences to choose the right parts.

Turbo Placement on EJ Engines

The EJ engine has powered Subarus for decades. In these engines, the turbocharger sits near the back of the engine bay on the passenger side. This spot is very close to the intake manifold.

Because of this layout, the top-mount intercooler maintains shorter piping to reduce turbo lag. This provides great response. If you want a quick and simple install, a top-mount is a great choice for your Subaru performance parts list.

Turbo Placement on FA Engines

The FA engine platform changed how Subaru designs engine bays. On the FA20 and FA24, the turbo sits at the bottom front. This setup lowers the center of gravity. But this layout makes charge pipe routing much longer and more complex.

Air must travel from the bottom of the block up to the intake. On a VB chassis WRX, this path needs custom pipes. While top-mount options still work, many builders choose front-mount kits for big power.

Fitment and Cooling Efficiency

Fitting a front-mount intercooler brings unique challenges for both EJ and FA engines. Because of the long path to the front bumper, you must use custom hardware. A quality front-mount kit needs custom 2.5-inch piping from the throttle body to the compressor outlet to fit correctly.

These kits also use custom silicone couplers and precise brackets. This hardware keeps the system sealed under high boost. Without these custom parts, the pipes would rub against other engine parts and leak.

Proper piping layout is critical for managing heat. In automotive physics, intercooler cooling efficiency is defined by the temperature difference between the inflow and outflow gas. This is compared to the temperature of the cooling medium.

You can review the formulas for this cooling math in academic cooling patents. Keeping these temperatures low prevents engine knock and protects your pistons. Matching your intercooler to your engine platform ensures that you get the best cooling performance. This is the key to building a strong, high-power Subaru.

How Much Horsepower Can Each Intercooler Support?

Your power goals decide which cooling setup you need. Choosing a Subaru WRX intercooler upgrade depends on how much power you want to make. Let us look at the power limits for each choice so you can plan your build.

Top mount limits

The stock top mount intercooler works well for a basic car. But it has a hard limit near 300 wheel horsepower. If you push past this point, the core cannot shed heat fast enough. This lets hot air enter the engine, which drops power and can cause knock. If you want a fast street car or a daily driver, a top mount intercooler is often the best choice. It keeps turbo lag low and fits in the stock spot without extra plumbing.

Upgraded top mount capabilities

An upgraded top mount from a brand like Cobb or Grimmspeed can handle more power. These units have larger cores and better end tanks than stock. They can support up to 450 wheel horsepower before they reach their limits. This makes them a great pick for street builds with a mild turbo upgrade. But once you go past 450 horsepower, engine bay heat builds up. This makes it hard for a top mount to cool the charge air. At that point, the hot engine bay blocks heat flow, which raises air heat.

Front mount potential

For builds aiming for 500 or more horsepower, a front mount intercooler is the best path. A front mount places the core at the bumper for direct air. A top-tier kit offers a 325% larger core area than the stock top mount to maximize heat transfer.

How well the unit cools depends on the gap in temperature between the hot boost air and the outside air. Science shows that intercooler cooling efficiency relies on this temperature gap to keep the air cold under high load. This helps prevent knock and keeps your motor safe.

No matter which path you choose, you need a strong motor to match. We can help you build the perfect Subaru built engine to handle your new power. Our team has the skills to back your goals, whether you build a quick daily or a full track car.

Supporting Mods for Your WRX Intercooler Upgrade

Adding a Subaru WRX intercooler upgrade is a great way to boost power and prevent heat soak. But a larger core is only one part of the system. To get the best results and keep your engine safe, you must make a few key extra changes.

The need for supporting parts

A larger cooling core allows your engine to run more boost without losing power to high heat. But the system must work as a whole to keep up this power. Your intercooler cooling efficiency is based on the heat gap between incoming gas, outgoing gas, and the cooling fluid. If other parts of the engine are weak or dirty, your new core cannot do its job.

Essential hardware changes

To protect your new setup, follow these five steps when you install your new cooling core. These changes will keep your boost steady and your intake air clean.

1. Add an air oil separator: Oil blow-by is a major threat to your intake tract. When oil vapor gets into your new core, it coats the inside walls and acts as an insulator. This oil coat quickly lowers your cooling power. To stop this, you should install an air oil separator to trap oil before it can reach your intake.
2. Get an engine tune: A larger core changes the density and flow of the air entering your engine. You need a new ECU tune to adjust fuel and timing. Running a larger core without a proper tune can make the engine run too lean and cause damage.
3. Upgrade your charge pipe: The stock plastic charge pipe is weak and prone to leaks. Under increased boost, the stock pipe can flex, leak, or even split. Upgrading to a strong metal pipe ensures that all of your boost reaches the intercooler without any loss.
4. Check your bypass valve: A stock valve may leak boost when you increase the pressure. Some advanced setups use a special bypass valve to manage compressed air flow based on engine load. Upgrading your valve ensures you do not bleed off power.
5. Manage cooling system flow: If you use a liquid-to-air core, you must manage your water flow. Running an electric water pump allows you to adjust the flow rate of the cooling fluid to match your needs. This helps keep core heat low even under hard track use.

Long-term engine protection

By making these upgrades together, you protect your Subaru from common issues like heat soak and oil buildup. These changes ensure your engine runs clean and strong for years. Proper support allows your car to make steady power on both the street and the track.

Best Intercooler Brands for Subaru WRX and STI

When you plan a Subaru WRX intercooler upgrade, picking the right brand is key. The best aftermarket brands offer better core designs to boost cooling. In fact, patent data shows that intercooler cooling efficiency depends on the temperature difference between the hot boost air and the cooling media.

Top-Mount Options for Daily Drivers

Top-mount intercoolers (TMICs) are ideal for street builds because they keep the piping short. This layout reduces turbo lag and keeps throttle response quick. You will get faster power and boost when you press the gas.

Cobb Tuning makes some of the most popular top-mount parts. Their kit for the 2022 to 2026 Subaru WRX costs $1,155 and features a 20-inch by 7-inch by 4-inch core. This unit gives a 30% airflow increase over the stock part. It is a direct bolt-on upgrade that is legal in all 50 states.

GrimmSpeed also offers high-quality top-mount kits known for great fitment and thick cores that resist heat soak. For older models, the Mishimoto top-mount kit is a solid option. This kit fits 2008 to 2014 WRX and STI models, making it a great budget choice to replace a leaking stock unit.

Front-Mount Upgrades for Maximum Power

If your goal is a high-horsepower build, you need a front-mount intercooler (FMIC). These systems place the cooling core in the front bumper for maximum airflow.

AMS Performance is a leading name for high-power builds. Their kit for the 2015 to 2021 WRX costs between $1,000 and $1,500. It features a massive 28.5-inch wide core that is 325% larger than the stock top mount. To ensure a tight seal, this kit includes custom 2.5-inch piping and silicone couplers from the throttle body to the turbo compressor.

ETS is another top brand, offering excellent front-mount kits for 2022 and newer WRX models. Their intercoolers use large, strong cores that handle high boost pressure without dropping flow.

How to Choose the Right Brand

To find the best part, look at your budget and power goals. If you plan to stick with basic bolt-on upgrades, a top-mount kit is your best bet.

Here is a quick guide to help you choose:

• Cobb Tuning: Best for 2022 and newer WRX owners who want a legal, high-flowing top-mount setup.
• AMS Performance: Best for high-horsepower track builds that need maximum front-end cooling.
• GrimmSpeed: Best for daily drivers who want easy installation and great heat resistance.
• Mishimoto: Best for older WRX models looking for a reliable, low-cost replacement kit.

No matter which brand you select, upgrading your intercooler will protect your engine. If you want to take your build further, look at high-quality Subaru performance parts to find the best setup.

Frequently Asked Questions

How much horsepower does a WRX intercooler upgrade add?

A Subaru WRX intercooler upgrade does not make horsepower on its own. It works by keeping your intake charge cool. According to Edge Autosport, factory intercoolers heat soak quickly even at stock boost levels. A larger cooler keeps air temperatures low so your engine does not lose power when hot.

Does a Subaru WRX intercooler upgrade require a tune?

You do not need a custom tune if you only install a top mount intercooler. The factory computer can adjust for the cooler air. However, a front mount intercooler has much longer piping and alters airflow. You must get a tune for a front mount to keep the engine safe and see real power gains.

Is a front mount intercooler better than a top mount for a WRX?

A front mount intercooler is better for high power builds. Cobb Tuning reports that their upgraded top mount offers a 30 percent airflow increase over stock. This works well on street cars. But if you want to make over 450 horsepower, you need a front mount to get enough cooling area.

How hard is it to install a WRX front mount intercooler?

Installing a front mount intercooler is a complex job that can take four to six hours. It requires you to remove the front bumper and trim some plastic. According to AMS Performance, these kits require custom piping from the throttle body to the turbo outlet. You may also need to move some factory parts.

Should I get a top mount intercooler for my daily driver WRX?

Yes, a top mount intercooler is the best choice for a daily driven WRX. The short piping keeps throttle response crisp and installation is straightforward. Upgraded TMIC units from brands like Cobb and Grimmspeed resist heat soak better than stock while fitting under the stock hood.

Does an intercooler upgrade help with heat soak on track days?

Yes, an upgraded intercooler significantly reduces heat soak during track sessions. Factory intercoolers struggle with prolonged performance even at stock boost. A larger core with more surface area sheds heat faster, letting you complete multiple hot laps before heat buildup becomes an issue. For serious track use, a front mount offers the best heat management.
