Understanding Engine Internal Components
Engine internals form the core mechanical assembly that converts fuel energy into rotational motion. Critical components include pistons, connecting rods, crankshafts, valves, and camshafts. Each component operates within precise tolerances measured in thousandths of an inch, where even minor deviations can significantly impact performance and reliability.
The Combustion Cycle Process
During each combustion cycle, pistons travel approximately 3.5-4 inches at speeds exceeding 4,000 feet per minute in high-performance applications. This generates tremendous mechanical stress, heat cycling from 200°F to over 500°F, and combustion pressures reaching 1,500+ PSI. Stock cast pistons begin to show stress fractures at sustained loads above 400 horsepower.
Component Interdependence
Modern engines operate as integrated systems where component failure cascades rapidly. Piston failure can destroy connecting rods, damage cylinder walls, and contaminate the oil system with metal debris. This is why upgrading to forged internals becomes critical when increasing power output beyond factory specifications.

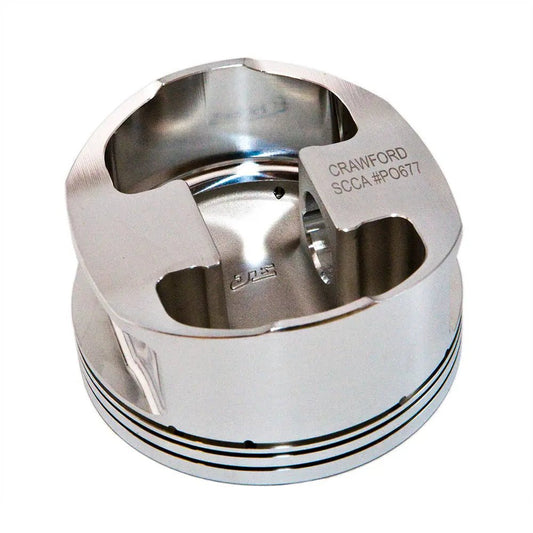

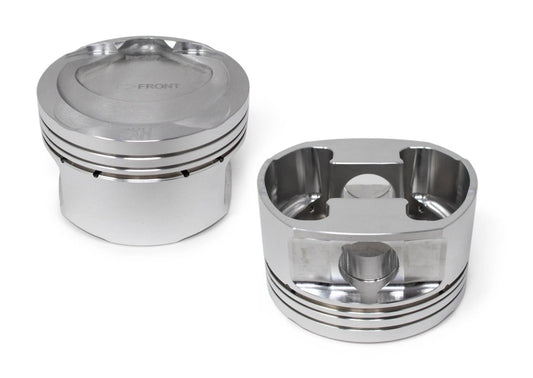

Crawford Performance Forged Piston Technology
6061-T6 Aluminum Construction
Crawford pistons start as 6061-T6 aluminum billets that undergo closed-die forging at 800°F under 2,000 tons of pressure. This process aligns the metal grain structure along stress lines, creating 40% greater tensile strength compared to cast alternatives. The result is a piston that maintains structural integrity at power levels exceeding 600 horsepower.
Precision Machining Specifications
Each piston undergoes CNC machining to tolerances of ±0.0005 inches. Ring lands are cut to exact specifications that maintain optimal ring seal under extreme cylinder pressures. Wrist pin bores receive diamond honing for perfect roundness, eliminating stress concentrations that cause failure in stock pistons.
Combustion Chamber Optimization
Piston crown geometry is designed using CFD analysis to promote complete fuel burn and reduce detonation tendency. The dome profile creates controlled turbulence that improves flame propagation speed by 15%, allowing for more aggressive timing maps and higher compression ratios without knock.
Performance Advantages
Power Handling Capability
Crawford forged pistons are validated for continuous operation at power levels up to 650 horsepower in naturally aspirated applications and 550 horsepower with forced induction. Thermal expansion coefficients are calculated to maintain optimal piston-to-wall clearances across the entire operating temperature range.
Compression Ratio Flexibility
Forged construction allows compression ratios from 8.5:1 to 12.5:1 depending on fuel octane and application requirements. Higher compression ratios increase thermal efficiency by up to 8%, translating directly to improved power output and fuel economy when properly tuned.
Heat Dissipation Properties
The forged aluminum structure conducts heat 60% more effectively than cast iron alternatives. This reduces piston crown temperatures by an average of 50°F, preventing pre-ignition and extending component life under sustained high-load conditions.
Applications and Compatibility
Racing Applications
Drag racing builds regularly exceed 8,000 RPM where piston acceleration forces reach 3,500+ G's. Crawford pistons maintain dimensional stability under these extreme conditions, with documented durability exceeding 500 quarter-mile passes at 1,200+ horsepower levels.
Street Performance Builds
Daily-driven vehicles benefit from the improved reliability margin forged pistons provide. Even at modest power increases (300-400 HP), the enhanced durability translates to extended service intervals and reduced risk of catastrophic failure during spirited driving.
Boost Applications
Turbocharged and supercharged engines create unique challenges with rapidly changing cylinder pressures. Crawford pistons feature reinforced ring lands and optimized crown thickness to handle the pressure spikes inherent in forced induction systems.
Installation Considerations
Professional Assembly Required
Forged pistons require precise deck height calculations, ring gap specifications, and piston-to-wall clearances that differ from stock components. Professional engine assembly ensures optimal performance and longevity.
Break-In Protocol
New forged pistons require a specific 500-mile break-in procedure with controlled heat cycles to properly seat rings and stabilize clearances. This process is critical for achieving maximum performance and component life.
Tuning Requirements
Engines equipped with forged pistons typically require ECU recalibration to optimize timing maps, fuel delivery, and knock detection parameters for the new compression ratio and combustion characteristics.
