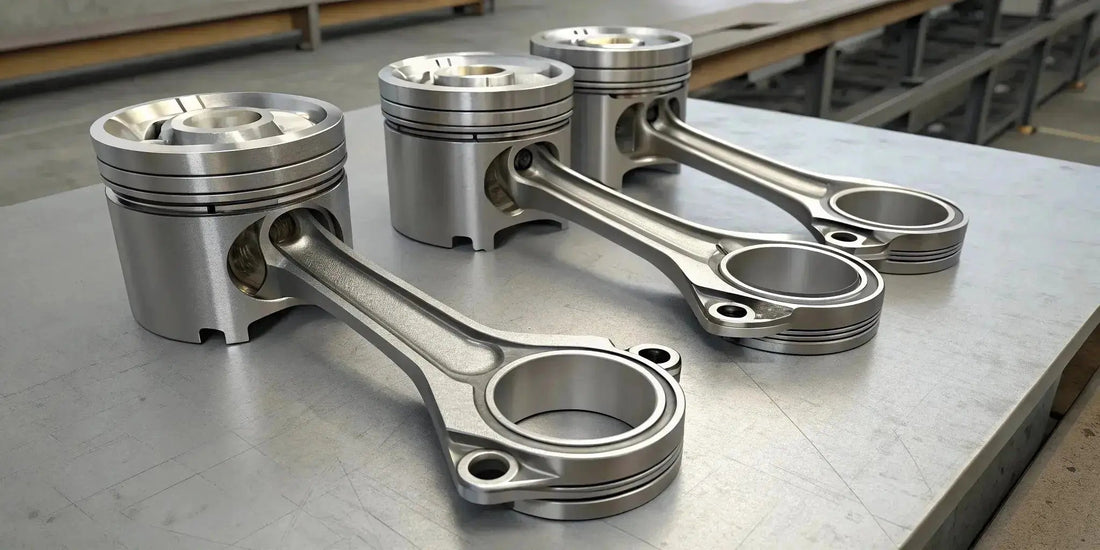

Forged Piston Setup Subaru EJ: Complete High-Boost Guide

A forged piston is the most critical component in any high-boost Subaru EJ engine build. This single part must survive extreme heat and pressure while keeping your cylinder walls intact. Choosing the wrong alloy or clearance can lead to engine noise, oil consumption, or catastrophic failure under load.

Ready to build a reliable forged short block for your Subaru? Browse Crawford Performance short blocks or call us at (410) 220-1450 to discuss your power goals with a Subaru engine specialist.

Forged Piston Setup Subaru EJ: Choosing Between 4032 and 2618 Alloy

Choosing the right alloy is the first step in any forged piston setup Subaru EJ owners should plan. Most forged pistons for the EJ series use either 4032 or 2618 aluminum alloys. These two metals have different amounts of silicon. This changes how they react to heat and stress. For a street car that sees some track time, 4032 is often the best pick. High-boost race builds usually need the extra strength of 2618 to stay safe under big loads.

Silicon content and heat growth

The main difference between these alloys is the silicon content. 4032 aluminum has about 12% silicon. This makes the metal expand less when it gets hot. Because of this, you can use tight piston-to-wall gaps of 0.0025 to 0.0035 inches. Tighter gaps mean the engine is quiet when cold and uses less oil over time.

On the other hand, 2618 aluminum has less than 1% silicon. This alloy grows more under heat. It needs larger gaps of 0.004 to 0.0055 inches for a Subaru EJ engine. While 2618 is tough and handles knock well, the large gaps can cause a slap noise until the engine reaches operating temperature. This noise is a normal trade for the high strength needed in race engines.

Tensile strength and metal fatigue

Strength is where 2618 aluminum wins. It has more tensile strength and handles fatigue better than 4032. This makes it the top choice for builds making 600 wheel horsepower or more. Race engines often run high boost that causes detonation. The 2618 alloy can bend rather than break, helping save the engine block if things go wrong.

For street builds, CrawfordSPEC FSR pistons use 2618-T6 aluminum to give users a high-strength part with a 9:1 compression ratio and low weight. While 4032 is great for long life in daily cars up to 600 horsepower, most builders prefer the safety of 2618 for high boost. You can find these parts in our short block kits.

Feature.	4032 Aluminum.	2618 Aluminum.
Silicon Content.	~12%.	<1%.
Expansion Rate.	Low.	High.
EJ Clearance.	0.0025 - 0.0035".	0.004 - 0.0055".
Noise Level.	Quiet.	High (Cold Slap).
Strength.	High.	Extreme.
Best Use.	Street (Up to 600whp).	Race (600+ whp).

What Piston-to-Wall Clearances Does Your High-Boost EJ Need?

Setting the right gap between the piston and the cylinder wall is a key step for any forged piston setup Subaru EJ build. If the gap is too small, the piston can seize in the bore. If it is too large, the piston will rock and cause noise. For high-boost engines, this clearance must match the metal alloy you choose.

Clearance and alloy choice

The type of metal sets your clearance needs. 4032 alloy has more silicon, which helps it stay the same size as it gets hot. This allows a tight gap of 0.003 to 0.0035 inches in an EJ25 engine. Silicon reduces the rate at which metal grows under heat. This tight fit keeps the engine quiet and helps the rings seal well from the first start.

2618 alloy is stronger but grows more. It needs a larger gap of 0.004 to 0.0055 inches. This extra room gives the metal space to grow as boost and heat rise. While 2618 is the best choice for race builds, the large gap can lead to more oil use when the engine is cold. Once it reaches full heat, the metal grows to fill the bore for a tight seal.

Thermal expansion and piston slap

Piston slap is the noise from a cold piston rocking in its bore. This is a common trade with 2618 alloy. Because the gap is large when cold, the piston skirt hits the wall. This noise often goes away as the engine warms up. A Crawford built short block is set up to keep this slap low while still giving the metal room to grow under high load.

Bore warp is another concern for high-boost EJ engines. High heat and pressure can bend the cylinder walls. If the clearance is too tight, this warp can cause the piston to scuff the walls. Larger gaps in race builds help prevent this damage.

Ring end gaps and seal quality

The gap at the ends of the piston rings also matters for a good seal. For a forged setup making over 500 horsepower, you need more room for the rings to grow. The top ring should have a gap of at least 0.020 to 0.024 inches. The second ring needs a bit larger gap of 0.022 to 0.026 inches. These specs come from standard piston ring rules for high-boost engines.

A wider second gap stops pressure from building up between the rings. This prevents the top ring from lifting, which keeps the seal strong. Proper ring gaps and wall clearances work together to stop oil loss and blow-by. When you spec these parts right, your high-boost Subaru EJ will stay strong and make power for a long time.

What Compression Ratio and Piston Bowl Design Do You Need for Forced Induction?

The compression ratio is a key part of your forged piston setup Subaru EJ engine build. It sets the base for how much air and fuel your engine can squeeze before a spark occurs. For high-boost builds, choosing the right ratio is a balance between power and safety. A lower ratio allows for more boost and timing. A higher ratio improves low-end response and off-boost drive.

Selecting the best ratio for pump gas

An 8.5:1 compression ratio is the most common target for Subaru EJ builds running 93-octane pump gas. This ratio is ideal for setups pushing 20 to 30 psi of boost. It provides a safe margin to help prevent detonation, which can lead to engine failure. A lower compression ratio raises thermal efficiency but also increases the risk of auto-ignition. By using 8.5:1, tuners gain the flexibility needed to run high boost on street fuel.

If you plan to run E85 or race fuel, you might opt for a higher ratio like 9.0:1 or 10.0:1. These fuels have a higher octane rating and can resist knock better. Crawford Performance offers customizable compression options for their short blocks.

Piston bowl and squish area

The shape of the piston bowl, or dish, sets the final compression ratio. Most turbo EJ pistons use a depressed bowl design to lower the ratio. A deeper dish reduces static compression. The bowl design impacts how the flame front travels across the cylinder. A well-designed bowl ensures the fuel burns fast and even, making more power with less heat soak.

Piston design also affects the squish or quench area, which is the flat part of the piston that comes close to the cylinder head at top dead center. Proper squish area design is vital for detonation suppression. It forces the air-fuel mix toward the center of the chamber as the piston rises. This motion creates turbulence that speeds up the burn and cools the chamber edges. You can find these features in a forged piston setup Subaru EJ kit or a built Crawford short block.

Customizing for high horsepower

High-horsepower builds often need more than a standard part. Piston bowl volume and shape must work with your head choice and head gasket thickness. Small changes in these parts can shift your effective compression ratio. Crawford Performance builds engines that can handle up to 770 HP by matching these parts for the best result. Their short block program allows you to pick the right internals for your needs.

Using a 2618 alloy piston with a custom bowl shape is a common path for race builds. These pistons have high strength and can withstand the heat of high-boost runs. While they need more clearance when cold, they offer the best strength for 600+ whp goals.

EJ20 vs EJ25: Matching Your Piston Setup to Your Platform

Your choice of a forged piston setup Subaru EJ build starts with your block. The 2.0L EJ20 and 2.5L EJ25 engines have different shapes. These differences change how the piston moves and wears inside the bore. You must match your piston design to these traits so your engine lasts under high boost.

Bore, stroke, and piston speed

The EJ20 uses a 92.0mm bore and a short 75.0mm stroke. This small stroke allows for a high rev limit, often over 8,000 RPM. In contrast, the EJ25 uses a 99.5mm bore and a 79.0mm stroke. While the EJ25 makes more torque, the long stroke increases piston speed at high RPM. High piston speeds put more stress on the rings and skirts. For a high-rev EJ20, you need a light piston to reduce moving force.

For an EJ25, the focus is often on ringland strength. Ringland failure is a common issue for stock EJ25 pistons above 350 whp. Stronger forged parts help the EJ25 handle high cylinder pressure without cracking.

Rod ratio and side loading

Rod ratio is the length of the rod divided by the stroke. The EJ20 has a better rod ratio of about 1.59, while the EJ25 is lower at about 1.47. A better rod ratio means the rod stays more vertical during the power stroke. This reduces the side force that pushes the piston into the cylinder wall. Because the EJ25 has more side loading, piston skirt design is vital.

Forged pistons for the EJ25 often feature coated skirts or special shapes to handle this extra wear. Reducing side load helps prevent bore damage and keeps the engine quiet. It also helps the rings stay flat against the wall for a better seal.

Reliability and deck design

The EJ257 uses a semi-closed deck which helps steady the bores under heat. However, the large 99.5mm bore is more prone to warping than the small EJ20 bore. To fix this, high-boost builds often use 2618 alloy pistons. These parts handle heat better than stock cast pistons.

The EJ207 often comes with a forged factory crank from Subaru, but both engines need forged pistons for big power. Choosing the right forged setup ensures your block can take 25 psi or more without failing.

Step-by-Step Guide to Specing Your EJ Forged Piston Build

Building a strong Subaru EJ engine starts with a good plan. You must pick parts that match your power goals and how you drive. A street car needs a quiet engine that lasts a long time. A race car needs a setup that can handle high heat and lots of boost. Your choice of parts will change how your car feels and how long it stays on the road.

Define your power goals

First, you must know how much power you want to make. Most street builds aim for about 400 horsepower. For these cars, a quiet engine is best. If you aim for 600 whp or more, you will need much stronger parts. High-boost builds put a lot of stress on the engine block. You can find the right base for your build by looking at Crawford Performance built short blocks.

Select the right alloy

You have two main choices for the metal used in your pistons. The 4032 alloy has about 12 percent silicon. This metal does not grow much when it gets hot, allowing a tight fit of 0.003 to 0.0035 inches. It is quiet and works well for daily driving. The 2618 alloy is tougher and resists breaking better. It is the best pick for high-boost race cars.

Bore size and ring gaps

Next, find the right size for your engine bore. A new block often uses the stock size of 99.5 mm. If you have a used block, you may need a larger size like 99.75 mm to fix any wear. For boost over 25 psi, set the top ring gap to 0.020-0.024 inches. The second ring gap should be 0.022-0.026 inches. This stops the rings from touching and breaking when the engine gets very hot. Check your gaps with a feeler gauge. A gap that is too small can lead to a broken ring land. A gap that is too large can cause blow-by and oil loss.

1. Define your power goal and how the car will be used.
2. Pick the best metal: 4032 for street, 2618 for track.
3. Select a compression ratio such as 8.5:1 to keep the engine safe on pump gas.
4. Determine if you need stock bore or an over-size bore.
5. Set the ring gaps based on your boost level to avoid engine damage.
6. Verify that pins and rods fit with your new parts.
7. Buy your setup from a trusted maker like JE Pistons or Manley.

What to Look for in a Pre-Built Forged Piston Short Block

A pre-built short block is the fastest way to get a forged piston setup Subaru EJ engines need for high boost. A quality build saves you from the risks of DIY work. You get a block with parts already matched for your power goals. For most, this is the best path to a motor that can handle 500 or more horsepower.

Essential internal parts

A top short block must use proven parts from brands like JE Pistons, CP-Carrillo, or Manley. These pistons often pair with forged rods and ARP bolts to keep the motor stable. Look for blocks that use high-quality race bearings from King or ACL. Crawford Performance offers short blocks starting at $4,999 that use these parts for the EJ257.

The rod choice is just as vital as the pistons. Tough rods prevent stretching under the high pressure of a big turbo. Many builders also choose IAG Performance short blocks for their varied power levels. As an authorized IAG Performance dealer, Crawford can help you choose between a Crawford build or an IAG block based on your specific needs.

Precision machine work

The real value of a pre-built block is the machine work. A builder must set the right piston-to-wall gap for the alloy. For a 2618 alloy, this is about 0.004 to 0.0055 inches. Proper gaps prevent the pistons from locking up when hot or slapping when cold. The builder must also file the ring gaps to match your boost. For builds over 25 psi, a top ring gap of 0.020 to 0.024 inches is standard. A balanced assembly reduces shaking and wear at high RPM.

Warranty and power support

Always check the warranty before you buy. Crawford Performance gives a 12-month or 12,000-mile warranty on all our motors. This gives you peace of mind that the work was done right. If you want more power, you can look at long blocks that start at $6,999. These units can support 770 HP and include built heads.

Frequently Asked Questions

How much HP will forged pistons add?

Forged pistons do not add power on their own. They make your engine strong enough to handle more boost and fuel. While stock Subaru EJ25 pistons often fail around 350 wheel horsepower, a good forged piston setup lets you safely reach much higher levels. Some built short blocks can handle over 700 horsepower. This increase comes from the extra boost and fuel you can run, not from the pistons themselves.

What is the best compression ratio for a turbo Subaru EJ?

An 8.5:1 compression ratio is the standard for high-boost Subaru EJ engines running 93-octane pump gas. This ratio provides a safe margin against detonation while still allowing strong power output. For E85 or race fuel, you can safely run 9.0:1 to 10.0:1 for better off-boost response. Crawford offers custom compression options to match your fuel and power goals.

Are 4032 pistons good for a turbo Subaru?

4032 pistons are a good choice for turbo Subaru builds making up to 600 wheel horsepower. Their high silicon content keeps thermal expansion low, allowing tight piston-to-wall clearances and quiet operation. For builds exceeding 600 whp or running high boost levels, 2618 alloy pistons are recommended for their superior strength and fatigue resistance.

How much piston-to-wall clearance does an EJ25 need?

An EJ25 with 4032 pistons needs 0.003 to 0.0035 inches of clearance. A 2618 piston in an EJ25 needs wider clearance of 0.004 to 0.0055 inches due to higher thermal expansion. These gaps prevent the piston from seizing when hot while maintaining proper ring seal. Always check the manufacturer spec sheet before assembly.

Can I reuse factory rods with forged pistons?

Factory Subaru rods are not recommended for use with forged pistons in high-boost builds. The stock rods become a weak point once you exceed 400 whp. Forged rods from Manley, IAG, or Crawford Performance are recommended to handle the increased cylinder pressure and prevent rod failure. A quality built short block includes forged rods matched to your power goals.
